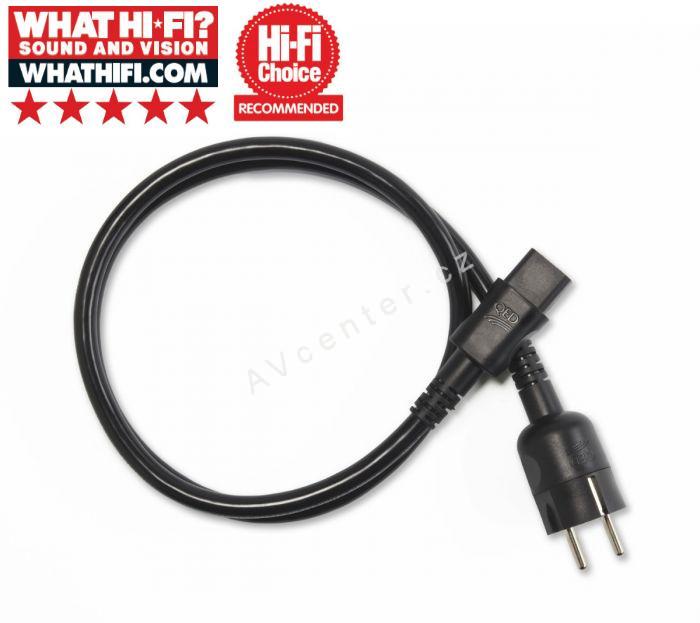

QED XT3 Power Cable - 3m

QED XT3 Power Cable - 3m

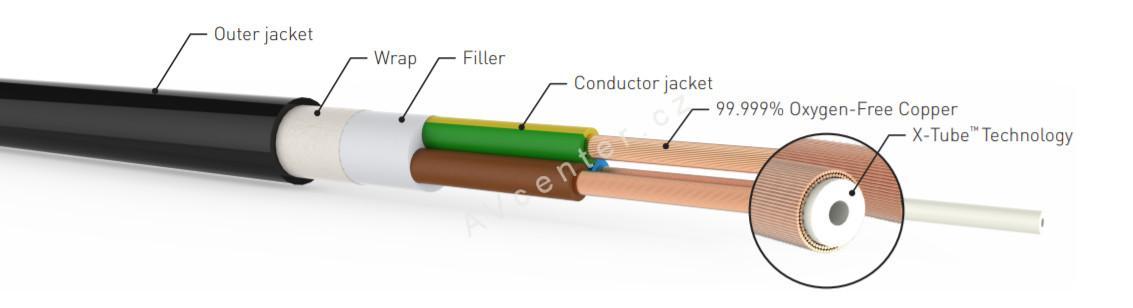

Napájecí kabely QED XT3 obsahují speciálně upravenou verzi technologie X-Tube™ podobnou té, která se používá v reproduktorových kabelech QED, ale je speciálně vyladěna tak, aby byla vhodná pro tento účel. Opletená jednotlivá jádra ve fázových a nulových vodičích jsou dostatečně malá, aby je neovlivňovaly vířivé proudy ze sousedních jader, které přispívají k efektu přiblížení.

Because they are effectively isolated from one another the carefully calculated twist rate of the strands means that no two conductors remain next to each other in the parallel configuration for more than a few millimetres, further enhancing the even current flow along the cable at all frequencies. The separate bundles are individually insulated using K130 PVC to control cable capacitance and provide the level of electrical isolation demanded by international safety standards, the whole arrangement is provided with a hollow LDPE core to control cable inductance. In this way the correct phase relationship between voltage and current is not altered by the cable parameters, further decreasing distortion when compared to an ordinary power cable.

XT3 is designed to be as thin and flexible, and thus practical, as possible. Only the live and neutral cores have been given the X-Tube treatment described above - the earth core (required only under fault conditions) is left in a conventional geometry. And because X-Tube geometry enables the whole cross-sectional area of the cable to be kept to a tidy 1.5 mm sq, XT3 is supremely flexible and usefully slim despite its audiophile potential.

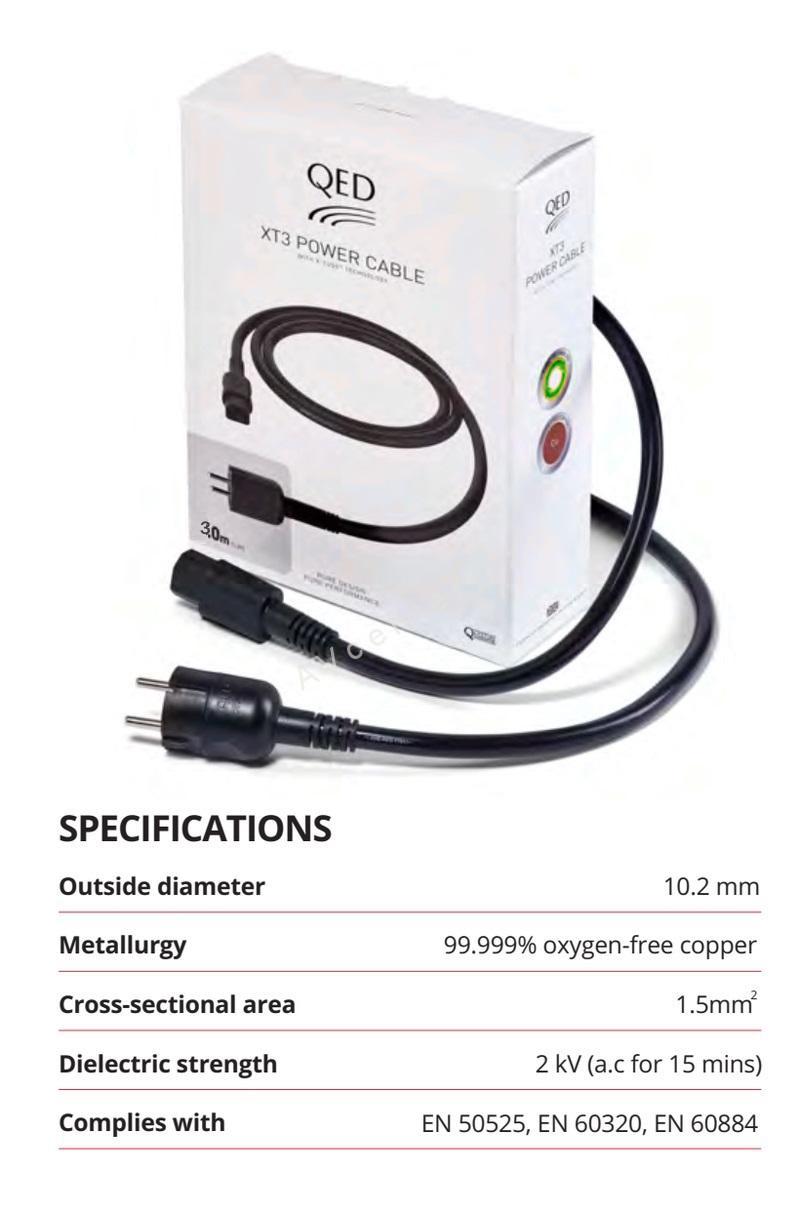

Vlastnosti:

• Conductor type: X-Tube
• Metallurgy: 99.999% oxygen-free copper
• Cross-sectional area: 1.5 mm sq
• Capacitance: 86 pF/m
• Inductance: 0.50 μH/m
• Loop resistance: 0.026 ohm/m
• Dielectric strength: 2 kV (ac for 15 mins)
• Complies with: EN50525; EN60320; EN60884
• Outer jacket: Black Pearl
• Nominal outside diameter: 10.2 mm
• Plugs: CEE 7/7
• Connector: IEC C13 794
